Rutulinis vožtuvas su elektriniu aktuatoriumi

Elekto aktuators tips 104, EA04

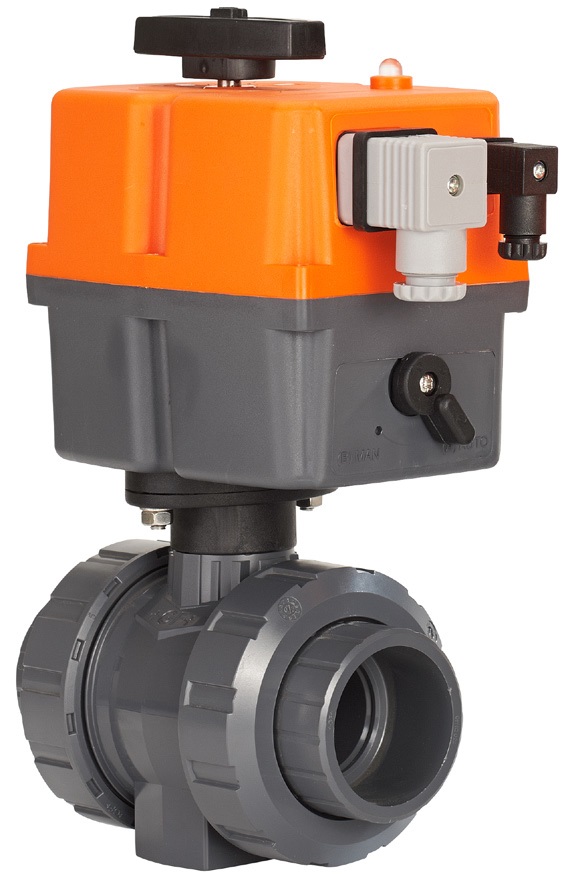

​Type 104 electrically actuated ball valve is comming from low cost class family.

Type 104 is based on the Ball Valve Type 546 (d16DN10 to d63DN50) with the electric actuator EA04. The Type 104 is designed for automation tasks with requirments.

Dimensions: d16DN10 to d63DN50
Connectors: solvent cement -socket and spigot, fusion spigots and sockets threaded.
Standards: ISO, BS, ASTM und JIS
Nominal Pressure: PN 10 for all materials.
Materials: PVC-U, PVC-C, PP-H
Sealing:
O-Rings:
 EPDM and FPM
Ball seal: PTFE, PVDF



Fields of Application:

  • Water Treatment
  • Pool applications



Advantages:

  • Simple design
  • Pre-installed limit switches
  • integrated emergency override
