IR (Infra Red) fusion

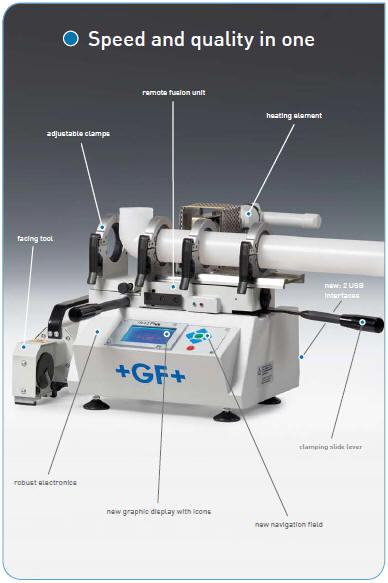

IR 63 Plus®
Weldable materials:
PROGEF® Standard → PP-H
PROGEF® Natural    → PP-n
SYGEF® Plus             → PVDF High Purity
SYGEF® Standard    → PVDF Standard

Weldable dimensions:
20mm (1/2") ... 63mm (2")

IR 225 Plus®
Weldable materials:
PROGEF® Standard → PP-H
PROGEF® Natural    → PP-n
SYGEF® Plus             → PVDF High Purity
SYGEF® Standard    → PVDF Standard

Weldable dimensions:
63mm (2") ... 225mm (9")

IR 315 Plus®
Weldable materials:
SYGEF® Plus → PVDF High Purity
SYGEF® Standard → PVDF Standard

Weldable dimensions:
250mm (10") ... 315mm (12")

In infrared (IR) fusion jointing the fusion areas of the components (pipes, fittings, valves) are heated to fusion temperature without contact to the heating element and jointed by means of mechanical pressure without using additional materials.

GF Piping Systems offers a wide range of fusion machines – also for the mobile use and the workshop use.

Advantages of IR Plus welding technology:

up to 50% faster than conventional butt fusion
low risk of contamination (non contact to the heating element)
minimal, defined bead
entirely reproducible fusion
low-stress fusion
fusion factor over 0.95

Fields of Application:

industrial applications
as well for high purity media and the use in clean rooms
